In the heap.

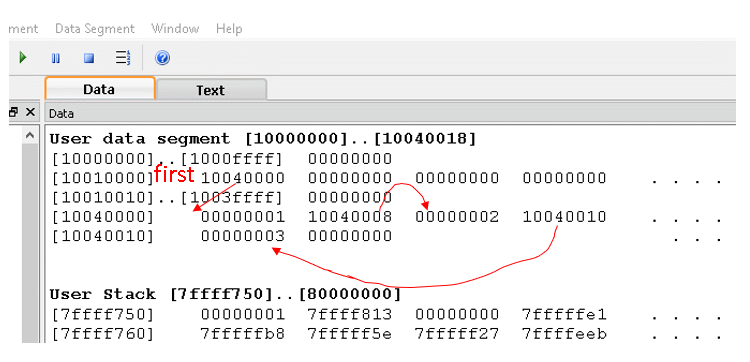

The picture shows memory after the program has run.
The word of memory at address
10010000 corresponds to symbolic address first .
It contains the address of the first node, 10040000 .
The red arrow points to the first node.
The first node contains the data, integer 1
and the address of the next node, 1004008.
Follow that address to the second node.
The second node contains the data, integer 2
and the address of the next node, 1004010.
Follow that address to the third node.
The third node contains the data, integer 3
and the address 0000000.
This indicates it is the last one in the chain.
Are the nodes of a linked list always sequential in memory as they are here?
