Answer:

Yes, because main calls a subroutine. The completed code for main is below.

         .text
         .globl  main
main:
         sub     $sp,$sp,4        ## push the return address
         sw      $ra,($sp)        ##

         la      $a0,mainPr       # prompt the user
         li      $v0,4            # service 4
         syscall

         jal     doLines          # process lines of input

         lw      $ra,($sp)        ## pop return address
         add     $sp,$sp,4        ##

         jr      $ra              ## return to OS

         .data
mainPr:  .ascii  "Type each line of text followed by ENTER.\n"
         .asciiz "Type Q at the start of a line to finish.\n"

(As before, to run on QtSPIM remove the lines with ## and use exception handler service 10 to return to the system.)

Subroutine `doLines`

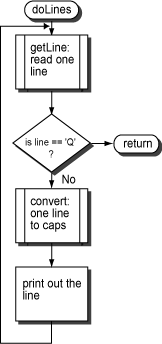

The main routine calls doLines. The flowchart shows the design for that routine. Below is its (incomplete) code.

# doLines -- read in and process each line of user input
#
# on entry:
#    $a0 -- address of the prompt text
#    $ra -- return address
#
# on exit:
#    no return values


         .text
         .globl  doLines
doLines:
         sub     $sp,$sp,4        # push the return address
         sw      $ra,($sp)

loop:                             # get a line

         la      $a0,    # argument: address of buffer

         li      $a1,    # argument: length of buffer

         jal             # get line from user

         la      $a0,line         # if "Q"
         jal     testEnd          # return to caller
         beqz    $v0,endloop

                                  # convert to capitals

         la      $a0,    # argument: address of buffer

         li      $a1,    # argument: length of buffer

         jal             # convert


         la      $a0,outline      # print out the result
         li      $v0,4
         syscall

         b       loop             # continue with next line

endloop:
         lw      $ra,($sp)        # pop return address
         add     $sp,$sp,4
         jr      $ra              # return to caller

         .data
outline: .ascii  ":"              # pad so output lines
                                  # line up with input
line:    .space  132              # input buffer

Answer:

Subroutine doLines

QUESTION 26:

Subroutine `doLines`
