Answer:

2N, twice the original integer.

0110 0001 = 9710.

1100 0010 = 19410.

(However, if a 1-bit is shifted off the left side, then the number is ruined).


Shift Left Logical

sll  d,s,shft      # $d gets the bits in $s
                   # shifted left logical
                   # by shft positions,
                   # where  0 ≤ shft < 32

Bits shifted left

A shift left logical of one position moves each bit to the left by one. The low-order bit (the right-most bit) is replaced by a zero bit and the high-order bit (the left-most bit) is discarded.

Shifting by two positions is the same as performing a one-position shift two times. Shifting by zero positions leaves the pattern unchanged. Shifting an N-bit pattern left by N or more positions changes all of the bits to zero.

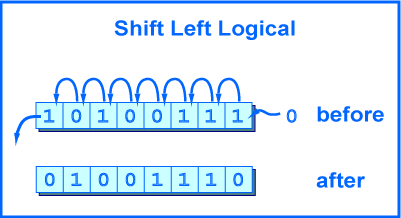

The picture shows the operation performed on eight bits. The original pattern is 1010 0111. The resulting pattern is 0100 1110.

The MIPS processor always performs the operation on a 32-bit register and puts the result in a 32-bit register.

The ALU (arithmetic/logic unit) which does the operation pays no attention to what the bits mean. If the bits represent an unsigned integer, then a left shift is equivalent to multiplying the integer by two.


QUESTION 2:

Here is an 8-bit pattern. Shift it left (logical) by two. Then write the new 8-bit pattern as hex.

OriginalShift Left Two
0110 1111
0x6F
