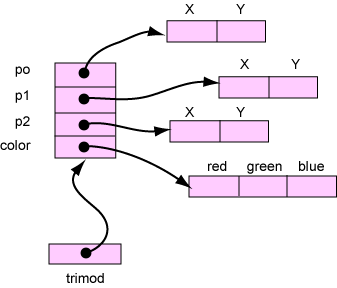

In the previous two puzzles, Triangle structs directly contained other structs. Another possibility is to have the Triangle struct contain pointers to the other struct types. Here is the picture:

Here are some typedef definitions for this:

typedef struct
{
  int x, y;
} Point;

typedef struct
{
  int red, green, blue;
} Color;

typedef struct
{
  Point *p0, *p1, *p2;
  Color *color;
} TriangleMod;

Here is code that constructs such a TriangleMod struct:

int main()
{
  TriangleMod *trimod;

  trimod = (TriangleMod *)malloc( sizeof( TriangleMod ) );
  trimod->p0 = (Point *)malloc( sizeof( Point ) );
  trimod->p1 = (Point *)malloc( sizeof( Point ) );
  trimod->p2 = (Point *)malloc( sizeof( Point ) );
  trimod->color = (Point *)malloc( sizeof( Color ) );
  ...
}

No values have been initialized in the above. This is done by statements like:

  trimod->p0->x = 45;
  triptr->p0->y = 97;
