Here is the Triangle
type,
a Triangle
variable tri
,
and a variable triptr
that points to a Triangle
:
typedef struct { int x, y; } Point; typedef struct { int red, green, blue; } Color; typedef struct { Point p0, p1, p2; Color color; } Triangle; int main () { Triangle tri ; Triangle *triptr ; triptr = (Triangle *)malloc( sizeof(Triangle) ); . . . }

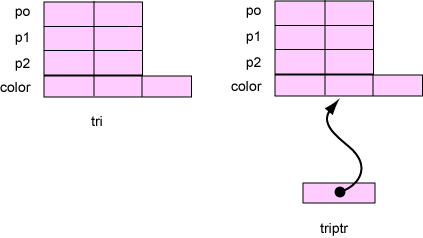

At this point, neither triangle is initialized.
The identifier tri
is the name for
the memory
of a Triangle
.
That memory can be assigned values by statements like:
tri.p0.x = 45; tri.p0.y = 97;
The variable triptr
holds a pointer to the memory of a Triangle
.
That memory can be assigned values by statements like:
triptr->p0.x = 45; triptr->p0.y = 97;
