The node is the last one in the list.
main:
la $s0,elmnt01 # get a pointer to the first node
loop: beqz $s0,done # while the pointer is not null
lw $a0,0($s0) # get the data of this node
. . . # do something with the node
lw $s0,4($s0) # get the pointer to the next node
b loop
done:
The
idea is to keep "advancing" the pointer $s0 from
node to node until it contains a null.
This is done in a loop.
The null pointer is detected with
a beqz instruction.

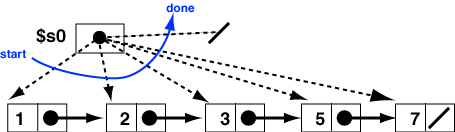

The picture shows the pointer advancing through the nodes until it becomes null.
Is there a limit to the size of linked list that this program can handle?
