The text segment.

Reversing a String

Traditionally a segment containing machine instructions is called "text". A process is when the processor is actively executing those machine instructions. (This is analogous to the phrase "text of a play" and "performance of a play").

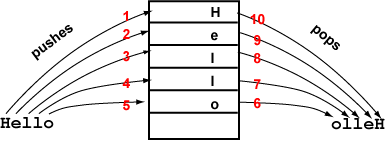

Here is a classic example of how a stack is used. The user enters a string, which is stored as a null-terminated string in a character buffer. The program then reverses the order of the characters in the buffer, and then writes out the reversed buffer. To understand how the program works inspect the following diagram. The string "Hello" is pushed onto the stack, from the buffer, character by character, starting with the 'H'. Then the characters are then popped from the stack back into the original string buffer. The last character pushed is the first one out. This reverses the order of the characters.

stack of characters

We will always push and pop full words (four bytes). Each character on the stack will be contained in the low order byte of a fullword.


(Review: ) What does the following instruction do? lbu $t0,string
