Complete Program

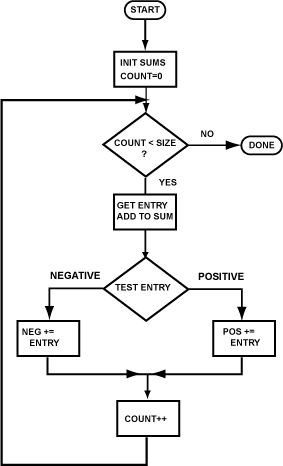

Here, is the complete program suitable for running. The data in the array has been simplified to make testing easier. Study how the code matches the flow chart.


## addIntArray.asm
##
## Sum all integers, the positive integers,
## and the negative integers in an array.

## Registers:
##  $8 -- count
##  $9 -- pointer to the array entry
## $10 -- current array entry
## $11 -- sum of all integers
## $12 -- sum of negative integers
## $13 -- sum of positive integers
## $14 -- pos. or neg. flag
## $15 -- length of the array

         .text
         .globl  main
# Initialize
main:    ori      $8,$0,0        #  count = 0
         ori      $11,$0,0       #  sum = 0
         ori      $12,$0,0       #  neg = 0
         ori      $13,$0,0       #  pos = 0
         lui      $9,0x1000      #  point at SIZE

         lw       $15,0($9)      #  get SIZE
         addiu    $9,$9,4        #  point to first entry

# while  count < SIZE do
loop:    beq      $8,$15,done
         sll      $0,$0,0        #  branch delay

# get entry, add to sum
         lw       $10,0($9)      #  get entry
         sll      $0,$0,0        #  load delay
         addu     $11,$11,$10    #  add to sum

#  test neg. or pos.
         slti     $14,$10,0x0    #  set $14 if entry is neg
         bne      $14,$0,neg     #  branch if negative
         sll      $0,$0,0        #  branch delay
         addu     $13,$13,$10    #  positive: add to PLUS
         j        ifend
         sll      $0,$0,0        #  branch delay

neg:     addu     $12,$12,$10    #  negative: add to NEG

ifend:   addiu    $8,$8,1        # count++
         addiu    $9,$9,4        # point at next entry
         j        loop
         sll      $0,$0,0        #  branch delay

# finish
done:    sll      $0,$0,0        # target for branch

        .data
size:   .word  4
array:  .word  1, 2, -2, -1
